無損檢測手冊是機體、發動機和部件制造廠編制的無損檢測程序，不僅包含主要的和輔助的結構，而且包括專利的部件的檢測程序，是機體、發動機和部件制造廠在真實的構件上和原位實際狀態下經過驗證可以實施的程序，每種機型均有相應的無損檢測手冊，制造廠家定期進行更新和修正，在兩次定期進行更新和修正之間通常發布一些臨時修正，在使用時要注意采用有效版本。
除無損檢測手冊外，制造廠家也會根據產品的使用狀況發布服務通告，如果服務通告中要求的無損檢測程序在產品無損檢測手冊中已經存在，該服務通告只給出在無損檢測手冊中的零件和檢驗程序號，否則在服務通告中會與按所用產品手冊的相同標準給出詳細的檢測程序。
作為NDT 人員應對所維護的機型的無損檢測手冊（NTM）有清晰的了解，能夠了解不同機型無損檢測要求的差異，掌握無損檢測手冊中各種檢測方法的通用要求，熟練應用無損檢測手冊中各種檢測程序指導檢測工作。由于所有機型的無損檢測手冊都是按照ATA 規范編寫的（ATA100 2-9《無損檢測手冊》），因此不同機型的無損檢測手冊的格式基本是一樣的。下面就按照BOEING NDTM 和AIRBUS NTM 及CMM 進行介紹。
一．波音系列飛機無損檢測手冊簡介
下面介紹BOEING NDTM 的組成和使用：
在查閱手冊時，首先應確認使用的手冊是最新有效的版本，即是滿足適航要求的技術文件，這才能作為工作依據，手冊的版本號、更新日期在前言頁上可以查到，在有效頁清單中可以知道更新、修改的情況,如下圖所示Revision ninety-two, dated August 5, 2007。
NONDESTRUCTIVE TEST MANUAL
BOEING DOCUMENT D6-37239
TO：All holders of Nondestructive Test Manual, Boeing Document D6-37239.
Revision ninety-two, dated August 5, 2007, to the 737 Nondestructive Test Manual
is attached. This manual is revised/changed on a four month cycle.

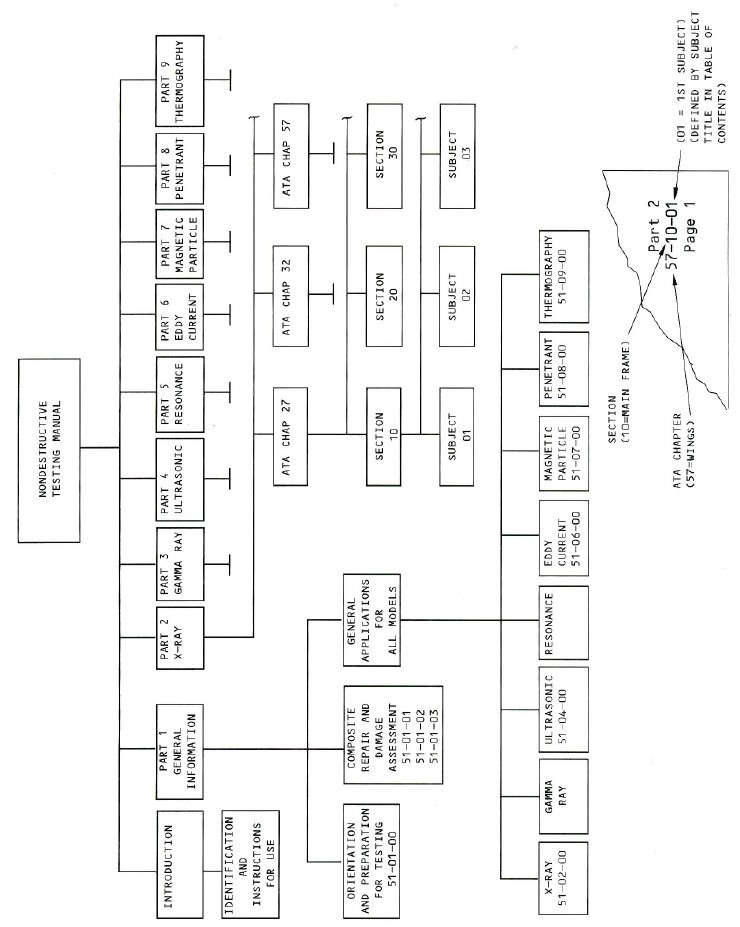

波音737 NDT 手冊組成（文件號D6－37239）
1).介紹
（1）手冊概述
（2）手冊的組織
（3）章節號
（4）有效頁
（5）技術支持?jǐn)?shù)據
（6）出版變更要求
2).Part 1 通用部分
（1）51-00-00 至51-00-01 縮略語、飛機站位等基礎數據；
（2）51-01-00 人員資格、方法選擇、方法比較、設備制造廠家信息等等；
（3） 51-01-01 至51-00-03 復合材料的檢查；
（4） 51-01-04 參考試塊的鉚釘安裝；
(5） 51-02 至51-06 各種無損檢測方法的概述
3） 波音NDT 手冊中的渦流檢測程序?qū)嵗?br />
1.PURPOSE
A. Use this procedure to do an inspection for surface cracks in aluminum parts.
B. This procedure uses an impedance plane display instrument.
C. Part 6, 51-00-00, Fig. 4 is an alternative inspection procedure.
2 Equipment
A. General
(1) Use inspection equipment that can be calibrated on the reference standard
as specified in paragraph 4.
(2) Refer to Part 1, 51-01-00, for data about the equipment manufacturers.
B. Instrument
(1) Use an eddy current instrument that:
(a) Has an impedance plane display.
(b) Operates at a frequency range of 50 kHz to 500 kHz.
(2)The instruments specified below were used to prepare this procedure.
(a) Phasec 1.1; Hocking Krautkramer.
(b) Nortec NDT-19e; Staveley Instruments.
(c) MIZ-22; Zetec, Inc.
2、探頭Probes
(1) Use a probe that:
(a) Operates at a frequency in the range of 50 kHz to 500 kHz.
(b) Has the configuration shown in Detail I.
(C) Can satisfactorily do the angularity check as shown in Detail II.
(d)Can satisfactorily do the probe shield test of Detail III. This is necessary
if the inspection area is near adjacent structure to make sure the adjacent structure
will not change the signals.
NOTE: Shielded probes are recommended.
3、試塊Reference Standards
(1) Use reference standards 126, 188A, 189 or NDT1048. See Details IV thru VII
for data about the reference standards.
(2) Other reference standards can be used if they are equivalent to those shown
in Detail IV thru VII.
E. 輔助工具Special Tools
(1) Use a nonconductive circle template as shown in Detail IX to help examine
near the edges of parts for cracks.
(2) Use a nonconductive straightedge as shown in Details X and XI to help examine
the area around flush head fasteners for cracks.
NOTE: The circle template and straightedge help to keep the probe a constant
distance from a fastener head or structural edge. The signal will slowly increase
when the probe gets closer to an edge of a part.
三、檢查準備Preparation for Inspection
A. Get access to the inspection area.
B. Remove loose paint, dirt and sealant from the surface of the inspection area.
